| NO |
Specification |
Description |
| 1 |
Name |

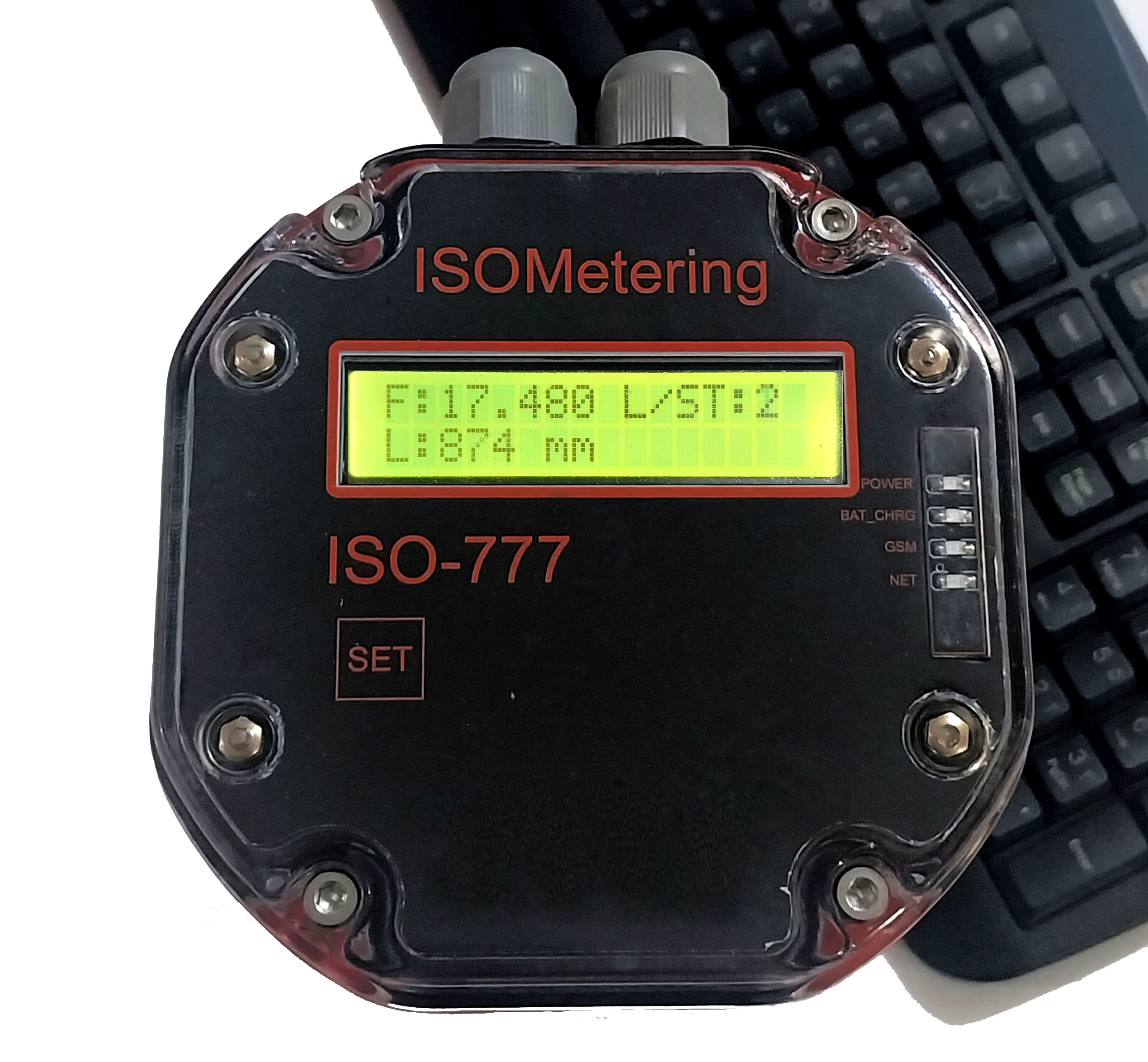

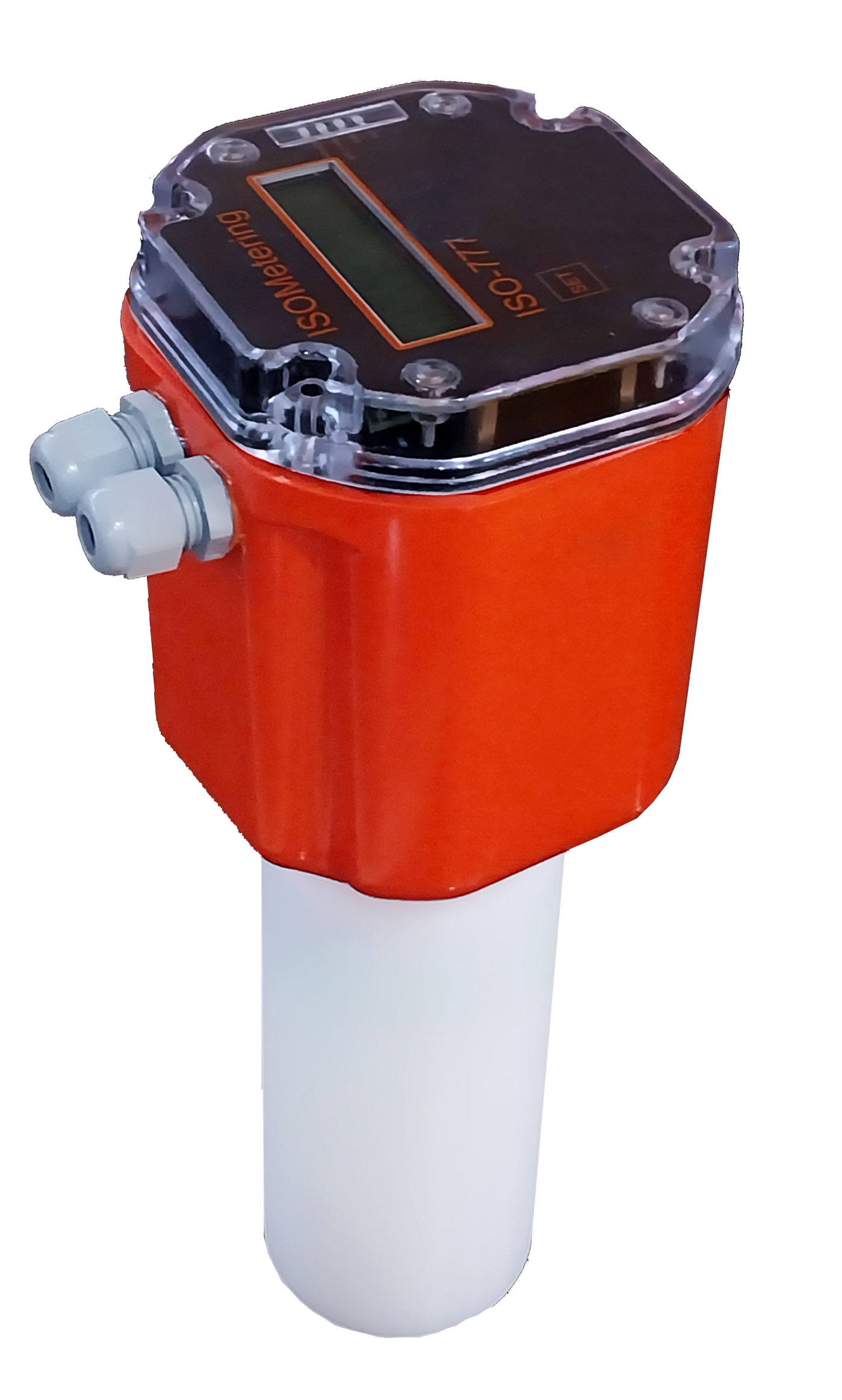

Level meter |
| 2 |
Model no |
ISO-777 |
| 3 |
Manufacture |
SANA GROUP |
| 4 |
Type |
Ultrasonic level meter |
| 5 |
Produce year |
2023 |
| 6 |
Measurement type |
230 V – 24V DC – Battery – solar cell |
| 7 |
Body material |
PP-ABS |
| 8 |
SENSOR SHELL |
PTFE – POLYAMID – ALUMINUM |
| 9 |
Battery type |
Chargeable – lithium |
| 10 |
Output |
GPRS /GSM – RS485 – RS232 – LCD |
| 11 |
Output protocol |
Modbus – RTU – MBUS – DLMS/COSEM |
| 12 |
Connection |
Socket – removable |
| NO |
Specification |
Description |
| 1 |
Name |
Level meter |
| 2 |
Model no |
ISO-777 |
| 3 |
GPRS Module |
2G / 4G / LTE – Customizable |
| 4 |
GSM |
ACTIVE |
| 5 |
Accuracy |
±1% (1mm) |
| 6 |
Level measurement |
1000mm / 4000mm / 6000mm / 10000mm |
| 7 |
Offset |
125 ~135 |
| 8 |
Flow rate |
Lit / sec – M3/h |
| 9 |
Total |
M3 |
| 10 |
SIMCARD |
2G / 4G ( 800 – 1800 ) |
| 11 |
Battery statues |
LCD – ALARM |
| 12 |
External output |
Modbus ( External GPRS connection ) |
| 13 |
IP |
68 |
| 14 |
Temperature |
+60 ~ (-20) © |
| 15 |
Power supply |
Battery + solar cell / battery + 24v / Battery+230v |
| 16 |
Key |
Touch + magnet key |
Measuring equipment for rivers, water dams, agricultural and industrial water channels, which play a very important role in surface water management with very high accuracy.

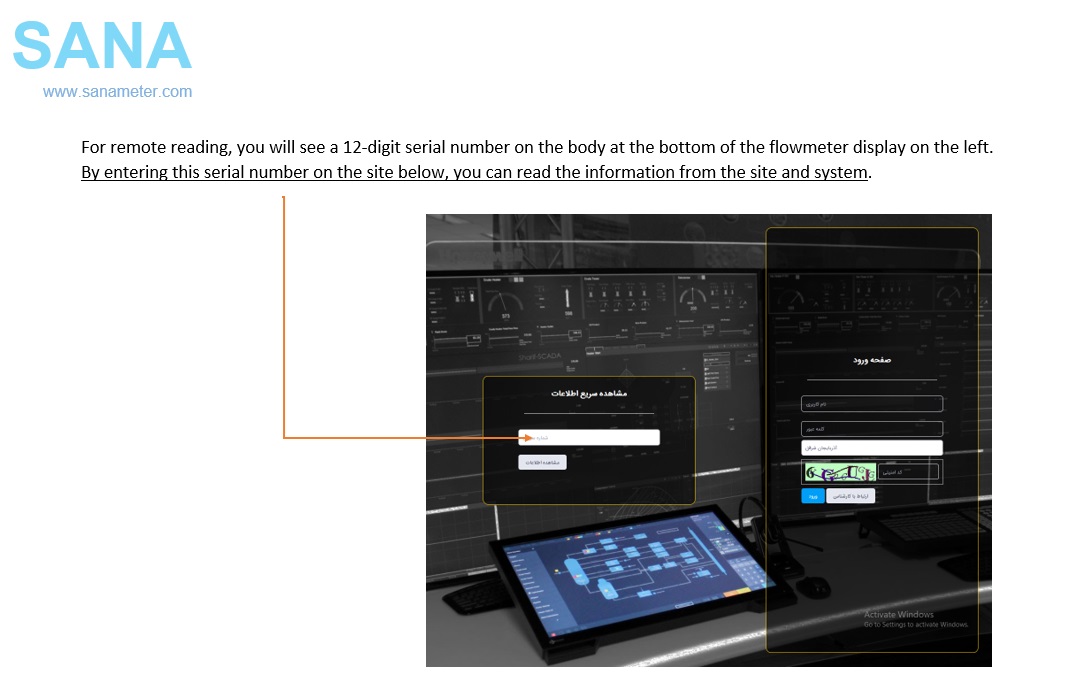

These devices have telecommunication modems for remote reading and also have the ability to connect to city electricity.
